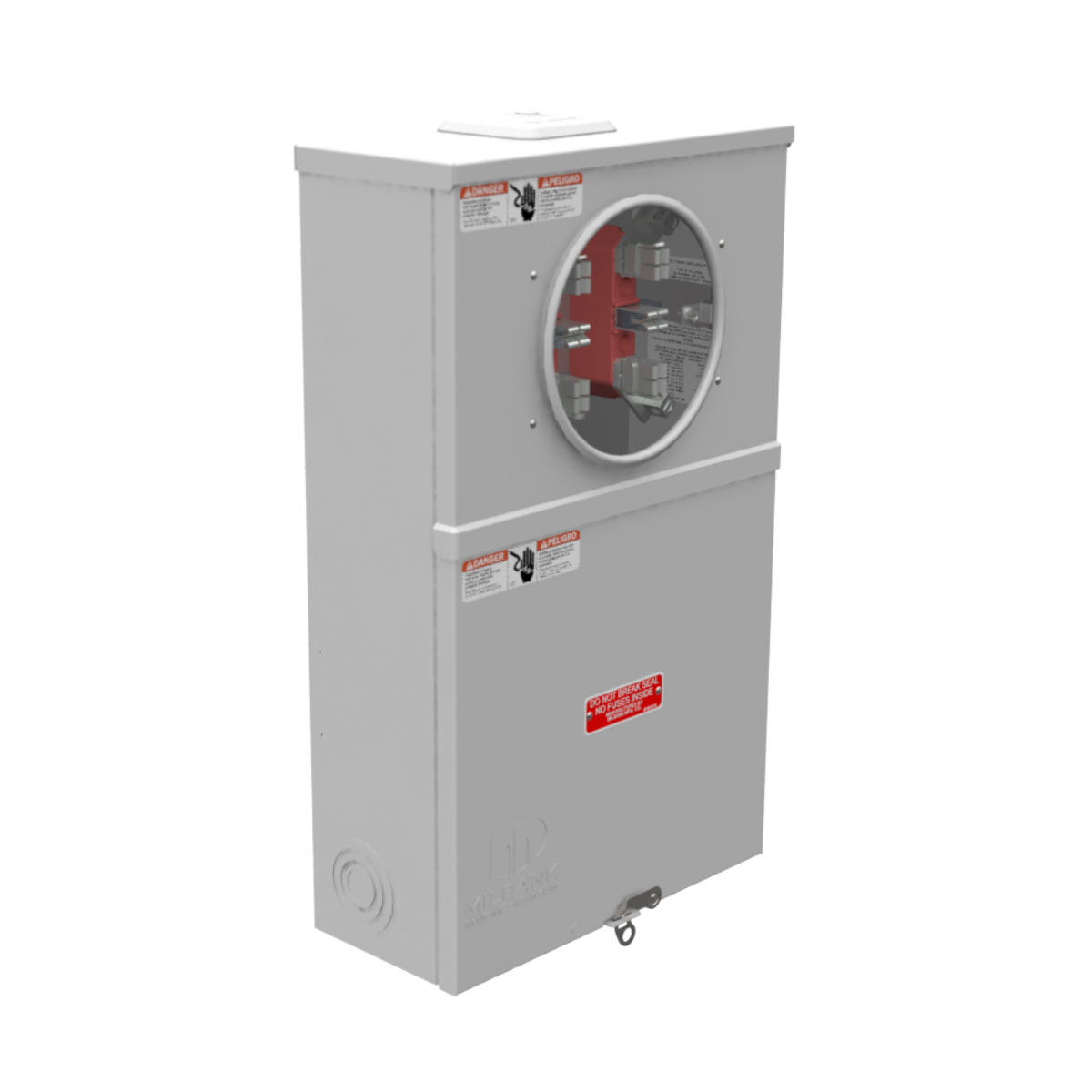

MILBANK UC3436-XL
6 Terminal Ring Type Small Closing Plate Test Switch Provision
Specifications | |
Amperage Rating | 20 Continuous Ampere |
Application | Meter Socket |
Brand Name | Milbank |
Bypass Provision | No Bypass |
Cable Entry | Overhead or Underground |
Main Breaker Size | No Main Breaker |
Material | G90 Galvanized Steel with Powder Coat Finish |
Equipment Ground | Ground Lug |
Frequency Rating | 60 Hertz |
Hub/Closing Plate | Small Closing Plate |
Insulation | Glass Polyester |
Number of Jaws | 6 Terminal |
Knockouts | True |
Line Side Wire Range | 12 - 10 AWG |
Load Side Wire Range | 12 AWG - 10 AWG |
Mounting | Surface Mount |
Number of Main Breakers | 0 |
Number of Meter Positions | 1 Position |
Number Of Receptacles | 0 |
Phase | 1 Phase |
Size | 5.125L x 12W x 20H |
Special Features | EURSERC Dwg #339 |
Standard | UL Listed;Type 3R |
Terminal | Single Mechanical |
Type | Ring Type Meter Socket |
Voltage Rating | 600 Volts Alternating Current |
Height | 20.0 IN |
Length | 5.125 IN |
Width | 12.0 IN |
